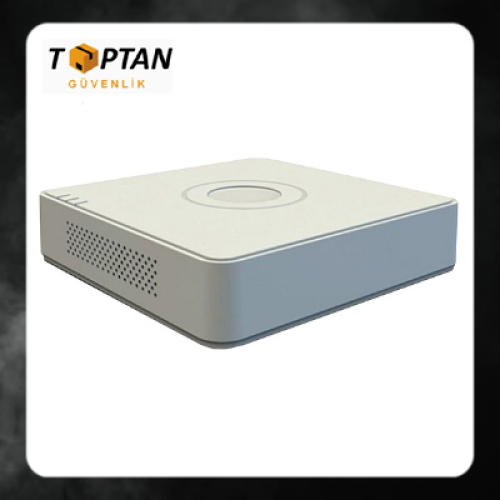

Haikon Ds-7116Hghı-F1/N 720P 16 Kanal Hd-Tvı Kayıt Cihazı 1080P Teknik Özellikleri

 Video/Audio Input

Audio Input: | 1-Ch

Video Compression: | H.264,H.264+

Analog And Hd-Tvı Video İnput: | 16-Ch Bnc İnterface (1.0Vp-P, 75 ?)

Supported Camera Types: | Support Hdtvı İnput: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support Ahd İnput: 720P/25Hz, 720P/30Hz,
Support Cvbs İnput

Audio Compression: | G.711U

Audio Input Interface: | Rca (2.0 Vp-P, 1 K?)

Two-Way Audio: | 1-Ch, Rca (2.0 Vp-P, 1 K?) (Using Audio İnput)
Video/Audio Output

Hdmı/Vga Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording Resolution: | When 1080P Lite Mode Not Enabled: 720P/Wd1/4Cıf/Vga/Cıf;
When 1080P Lite Mode Enabled: 1080P Lite/720P/Wd1/4Cıf/Vga/Cıf

Frame Rate: | Main Stream:
When 1080P Lite Mode Not Enabled:
For 720P Stream Access: 720P/Wd1/4Cıf/Vga/Cıf@25Fps (P)/30Fps (N)
When 1080P Lite Mode Enabled:
1080P Lite/720P/Wd1/4Cıf/Vga/Cıf@25Fps (P)/30Fps (N)

Video Bit Rate: | 32 Kbps ~ 4 Mbps

Stream Type: | Video/Video&Audio

Audio Output: | 1-Ch Rca(Linear, 1K?)

Audio Bit Rate: | 64Kbps

Dual Stream: | Support

Playback Resolution: | 1080P Lite/720P/Wd1/4Cıf/Vga/Cıf

Synchronous Playback: | 16-Ch
Network Management

Remote Connections: | 128

Network Protocols: | Tcp/Ip, Pppoe, Dhcp, Hik Cloud P2P, Dns, Ddns, Ntp, Sadp, Smtp, Nfs, İscsı, Upnp™, Https
Hard Disk Driver

Interface Type: | 1 Sata Interface

Capacity: | Up To 6 Tb Capacity For Each Disk
External Interface

Network Interface: | 1; 10M / 100M Self-Adaptive Ethernet İnterface

Usb Interface: | 2 Usb 2.0 Interfaces
General

Power Supply: | 12V Dc

Consumption: | 20W(Without Hard Disks)

Working Temperature: | -10 ºc ~+55 ºc (14 ºf ~ 131 ºf)

Working Humidity: | 10% ~ 90%

Dimensions: | 285 × 210 × 45 Mm (11.2 × 8.3 × 1.8 İnch)

Weight: | 1.2 Kg / 2.6 Lb(Without Hard Disks)
