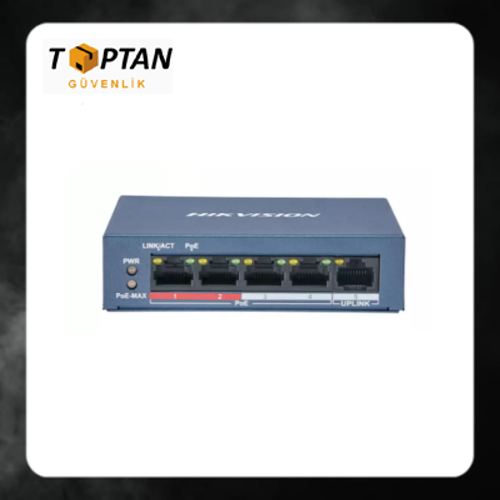

HAIKON NETWORK SWITCH DS-3E0105P-E/M(B) 4 x 10/100

Ürün Açıklaması

* 4x10/100 Base-TX port
* 1x100M Uplink port
* 1Gbps switching
* 0.74Mpps forwarding
* Port önceliklendirme (1. port)
* 1K MAC adres tablosu
* FlowControl
* 58W PoE
* Extent Mode desteği
* 0°C-40°C çalışma sıcaklığı

DS-3E0105P-E/M

PoE Switch

• Ports 1 to 4 support IEEE 802.3af standard.
• When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 4 support long-distance data transmission up to 250 meters.
• All ports support 6 kV lightning protection.
• This switch supports Auto MDI/MDIX.
• This switch supports store-and-forward.
• This switch supports MAC address auto learning and auto aging.
• This switch supports smart cache optimization.
• This switch supports desktop / wall mounting.

Port

• Port amount 5
• Port type RJ45, 10/100 Base-T(X)
• Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding method Store-and-forward
• Flow control Back-pressure flow control in IEEE 802.3x full duplex
• Priority queue 2
• MAC address table 1 K
• QoS Supported on ports 1 and 2.
• Switching capacity 1 Gbps
• Packet forwarding rate 0.744 Mpps

Physical appearance/structure

• Appearance 0.6 mm sheet of galvanized metal without electric fan
• Weight 0.141 kg
• Dimension 100 mm × 100 mm × 26 mm
• Mounting type Desktop / wall mounting

Environment

• Operating temperature (0 - 40) °C
• Storage temperature -40 - 70) °C
• Operating humidity (10 – 90) % RH, non-condensing
• Storage humidity (5 – 90) % RH, non-condensing

Power supply

• Power input 48 V DC, 0.8 A
• Reverse connection protection Supported
• Power consumption < 38 W

Other parameters

• LED indicator Link/Act LED indicators, PoE LED indicator, Power LED indicator
